07/27 nodejs + Unity연동 (UnityWebRequest)

게임 네트워크 프로그래밍 2021. 7. 27. 13:26

ranking-server폴더 만들기

폴더 안에서

npm init -y

npm i express

코드 작성

app.js

const express = require('express');
const app = express();

app.get('/', (req, res) => {
    res.send('hello world!');
});
app.listen(3030, () => {
    console.log('server is running at 3030 port.');
})

점수 입력하는 라우터

const express = require('express');
const app = express();

let users = {};

app.use(express.json());

app.get('/', (req, res) => {
    res.send('hello world!');
});

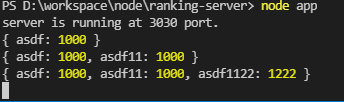

app.post('/score', (req, res) => {
    const { id, score} = req.body;
    users[id] = score;
    console.log(users);
    res.status(200).end();
});

app.listen(3030, () => {
    console.log('server is running at 3030 port.');
})

최종 코드
API 설명

POST : /scores
{ id, score }
점수를 등록하거나 갱신

GET : /scores/top3
{ cmd, message, result }
result : Array

GET : /scores/id
해당 id의 유저 점수를 얻어 옵니다.
{ cmd, message, result }
result : Object

const express = require('express');
const app = express();

let users = [];

app.use(express.json());

app.get('/', (req, res)=>{
    res.send('hello world!');
});

app.post('/scores', (req, res)=>{
    const { id, score } = req.body;

    let result = {
        cmd: -1,
        message: ''
    };

    let user = users.find(x=>x.id == id);

    if( user === undefined){
        //아직 등록이 한번도 안된 유저 신규 등록
        users.push( { id, score } );

        result.cmd = 1001;
        result.message = '점수가 신규 등록 되었습니다.';

    }else{

        console.log(score, id, user.score);

        if( score > user.score){   //등록 하려고 하는 점수가 저장된 점수보다 크다면 갱신

            user.score = score;

            result.cmd = 1002;
            result.message = '점수가 갱신 되었습니다.';

        }else{
            result.cmd = 1003;
        }
    }

    console.log(users);
    res.send(result);
});

app.get('/scores/top3', (req, res)=>{
    let result = users.sort(function (a, b) {
        return b.score - a.score;
    });

    result = result.slice(0, 3);    // 0 ~ n-1

    res.send({
        cmd: 1101,
        message: '',
        result
    });
});

app.get('/scores/:id', (req, res)=>{
    console.log('id: ' +  req.params.id);
    let user = users.find(x=>x.id == req.params.id);
    if(user === undefined){
        res.send({
            cmd: 1103,
            message: '잘못된 id입니다.',
        });
    }else{
        res.send({
            cmd: 1102,
            message: '',
            result: user
        });
    }
});


app.listen(3030, ()=>{
    console.log('server is running at 3030 port.');
});

ScriptableObject

https://docs.unity3d.com/kr/2019.4/Manual/class-ScriptableObject.html

ScriptableObject - Unity 매뉴얼

ScriptableObject는 클래스 인스턴스와는 별도로 대량의 데이터를 저장하는 데 사용할 수 있는 데이터 컨테이너입니다. ScriptableObject의 주요 사용 사례 중 하나는 값의 사본이 생성되는 것을 방지하

docs.unity3d.com

using UnityEngine;

[CreateAssetMenu(fileName = "Data", menuName = "ScriptableObjects/SpawnManagerScriptableObject", order = 1)]
public class SpawnManagerScriptableObject : ScriptableObject
{
    public string id;
    public int score;
}

RankMain.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using Newtonsoft.Json;
using UnityEngine.Networking;
using System.Text;

public class RankMain : MonoBehaviour
{
    public string host;
    public int port;
    public string top3Uri;
    public string idUri;
    public string postUri;

    public SpawnManagerScriptableObject scriptableObject;

    public Button btnGetTop3;
    public Button btnGetId;
    public Button btnPost;

    void Start()
    {
        this.btnGetTop3.onClick.AddListener(() => {
            var url = string.Format("{0}:{1}/{2}", host, port, top3Uri);
            Debug.Log(url);

            StartCoroutine(this.GetTop3(url, (raw) =>
            {
                var res = JsonConvert.DeserializeObject<Protocols.Packets.res_scores_top3>(raw);
                Debug.LogFormat("{0}, {1}", res.cmd, res.result.Length);
                foreach (var user in res.result)
                {
                    Debug.LogFormat("{0} : {1}", user.id, user.score);
                }
            }));


        });

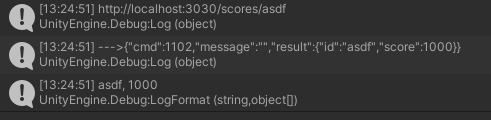

        this.btnGetId.onClick.AddListener(() => {
            var url = string.Format("{0}:{1}/{2}", host, port, idUri);
            Debug.Log(url);

            StartCoroutine(this.GetId(url, (raw) => {

                var res = JsonConvert.DeserializeObject<Protocols.Packets.res_scores_id>(raw);
                Debug.LogFormat("{0}, {1}", res.result.id, res.result.score);

            }));
        });
        this.btnPost.onClick.AddListener(() => {
            var url = string.Format("{0}:{1}/{2}", host, port, postUri);
            Debug.Log(url); //http://localhost:3030/scores

            var req = new Protocols.Packets.req_scores();
            req.cmd = 1000; //(int)Protocols.eType.POST_SCORE;
            req.id = scriptableObject.id;
            req.score = scriptableObject.score;
            //직렬화  (오브젝트 -> 문자열)
            var json = JsonConvert.SerializeObject(req);
            Debug.Log(json);
            //{"id":"hong@nate.com","score":100,"cmd":1000}

            StartCoroutine(this.PostScore(url, json, (raw) => {
                Protocols.Packets.res_scores res = JsonConvert.DeserializeObject<Protocols.Packets.res_scores>(raw);
                Debug.LogFormat("{0}, {1}", res.cmd, res.message);
            }));

        });
    }

    private IEnumerator GetTop3(string url, System.Action<string> callback)
    {

        var webRequest = UnityWebRequest.Get(url);
        yield return webRequest.SendWebRequest();
        if (webRequest.result == UnityWebRequest.Result.ConnectionError || webRequest.result == UnityWebRequest.Result.ProtocolError)
        {
            Debug.Log("네트워크 환경이 안좋아서 통신을 할수 없습니다.");
        }
        else
        {
            callback(webRequest.downloadHandler.text);
        }
    }

    private IEnumerator GetId(string url, System.Action<string> callback)
    {
        var webRequest = UnityWebRequest.Get(url);
        yield return webRequest.SendWebRequest();

        Debug.Log("--->" + webRequest.downloadHandler.text);

        if (webRequest.result == UnityWebRequest.Result.ConnectionError || webRequest.result == UnityWebRequest.Result.ProtocolError)
        {
            Debug.Log("네트워크 환경이 안좋아서 통신을 할수 없습니다.");
        }
        else
        {
            callback(webRequest.downloadHandler.text);
        }
    }

    private IEnumerator PostScore(string url, string json, System.Action<string> callback)
    {

        var webRequest = new UnityWebRequest(url, "POST");
        var bodyRaw = Encoding.UTF8.GetBytes(json); //직렬화 (문자열 -> 바이트 배열)

        webRequest.uploadHandler = new UploadHandlerRaw(bodyRaw);
        webRequest.downloadHandler = new DownloadHandlerBuffer();
        webRequest.SetRequestHeader("Content-Type", "application/json");

        yield return webRequest.SendWebRequest();

        if (webRequest.result == UnityWebRequest.Result.ConnectionError || webRequest.result == UnityWebRequest.Result.ProtocolError)
        {
            Debug.Log("네트워크 환경이 안좋아서 통신을 할수 없습니다.");
        }
        else
        {
            Debug.LogFormat("{0}\n{1}\n{2}", webRequest.responseCode, webRequest.downloadHandler.data, webRequest.downloadHandler.text);
            callback(webRequest.downloadHandler.text);
        }
    }

}

Protocols.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Protocols
{
    public class Packets
    {
        public class common
        {
            public int cmd;
        }
        public class req_scores : common
        {
            public string id;
            public int score;
        }

        public class res_scores : common
        {
            public string message;
        }

        public class user
        {
            public string id;
            public int score;
        }

        public class res_scores_top3 : res_scores
        {
            public user[] result;
        }

        public class res_scores_id : res_scores
        {
            public user result;
        }
    }
}

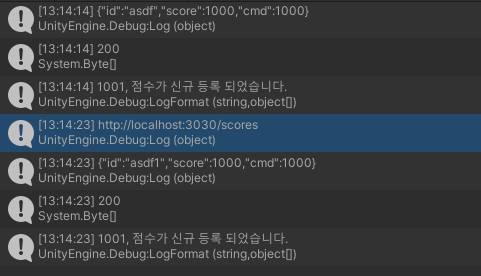

점수 등록
